Nazwa handlowa:
Greef
Orzecznictwo:
CE
Model Number:
TYP
wideo
wideo

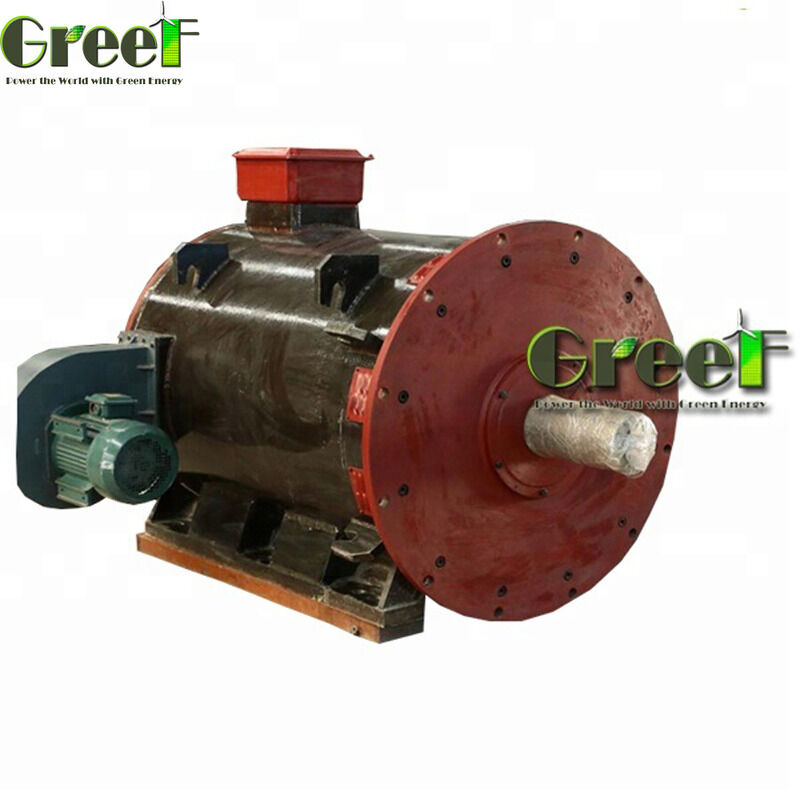

TYP Magnet motors feature rotors with permanent magnets, providing enhanced efficiency and increased power density relative to frame size. Powered by frequency inverters, these motors deliver consistent torque across a broad speed range while maintaining high efficiency at low speeds without forced ventilation. W21 Magnet motors operate quietly at low speeds, contributing to significant energy savings for applications prioritizing noise reduction and efficiency.
Reduces energy consumption by up to 30% compared to traditional induction motors. Maintains high efficiency across loads from 20% to 110% of rated capacity, achieving 10-40% energy savings in real-world applications. Features power factor close to 1.0 at rated load, minimizing stator current and copper losses.
Delivers consistent torque across wide speed ranges without forced ventilation. Ideal for applications requiring speed variation with constant torque, even at low speeds. Operates effectively without encoder requirements.
Bearings provide L10 lifespan up to 100,000 hours (over 10 years continuous use). Grease nipples enable easy re-lubrication, significantly reducing maintenance downtime.
Utilizes powerful rare-earth Neodymium-Iron-Boron (NdFeB) magnets, approximately 18 times stronger than conventional ferrite magnets. Protective epoxy coating enhances mechanical strength and corrosion resistance.
Embedded PTC thermistors in windings protect against overheating from phase loss, overload, and voltage irregularities, improving operational safety and reliability.
Synchronous motor design eliminates slip and rotor power losses. Provides stable speed performance unaffected by load or voltage changes, enhancing control accuracy.
Maximum torque/current ratio control maintains high power factor throughout speed range. Reduces stator current by 15-30%, decreasing cable transmission losses and increasing cable capacity.
15-20°C lower temperature rise than comparable asynchronous motors under same conditions, contributing to longer motor life and better performance.
Suitable for injection molding machines, air compressors, pipe making equipment, hydraulic machinery, food processing, extruders, wire drawing, and pharmaceutical manufacturing. Requires dedicated permanent magnet motor inverter for optimal performance.
Switching from 37kW IE2 induction motor can yield approximately 9,000 RMB annual energy cost savings with 24/7 continuous operation.
| Frame | 1000 rpm | 1500 rpm | 3000 rpm | |||
|---|---|---|---|---|---|---|
| L | L/2 | L | L/2 | L | L/2 | |
| 132S | 1,4 | 1,6 | 0,9 | 1 | 0,9 | 1 |
| 132M | 1,4 | 1,6 | 0,9 | 1 | 0,9 | 1 |
| 132M/L | 1,4 | 1,6 | 0,9 | 1 | 0,9 | 1 |
| 160M | 1,9 | 2,1 | 1,2 | 1,4 | 1,2 | 1,4 |
| 160L | 1,9 | 2,1 | 1,2 | 1,4 | 1,2 | 1,4 |
| 180M | 2,5 | 2,8 | 1,7 | 1,9 | 1,7 | 1,9 |
| 180L | 2,6 | 2,8 | 1,7 | 1,9 | 1,7 | 1,9 |
| 200M | 3 | 3,3 | 2 | 2,2 | 2 | 2,2 |
| 200L | 3 | 3,3 | 2 | 2,2 | 2 | 2,2 |
| 225S/M | 4,4 | 4,9 | 2 | 2,2 | 2 | 2,2 |
| 250S/M | 4,4 | 4,8 | 3 | 3,3 | 3 | 3,3 |
| 280S/M | 4,4 | 4,8 | 2,7 | 2,9 | 2,7 | 2,9 |
| 315S/M | 4,9 | 5,4 | 2,5 | 2,7 | 2,5 | 2,7 |
Contact us for detailed specifications, pricing, and technical support.
TYP series high-efficiency permanent magnet frequency conversion synchronous motors are designed for diverse industrial applications requiring reliable and efficient performance.
Greef's TYP model Permanent Magnet Motor offers exceptional power-saving technology manufactured in China with CE certification. This 3-phase AC Synchronous Motor features SKF bearings and operates at 50/60Hz with 6 poles.
Ideal for Electric Vehicles, Robotics, and Industrial Automation. Customizable solutions available with minimum order quantity of 1 set. Secure packaging in foam and plywood cases ensures safe delivery.
Payment options: T/T, Western Union, MoneyGram, L/C. Delivery time: 25 working days. Flexible pricing available.
Permanent Magnet Motors are carefully packaged with protective materials and placed in sturdy, custom-designed boxes. We use reliable carriers with tracking and insurance options to guarantee safe and timely delivery.
