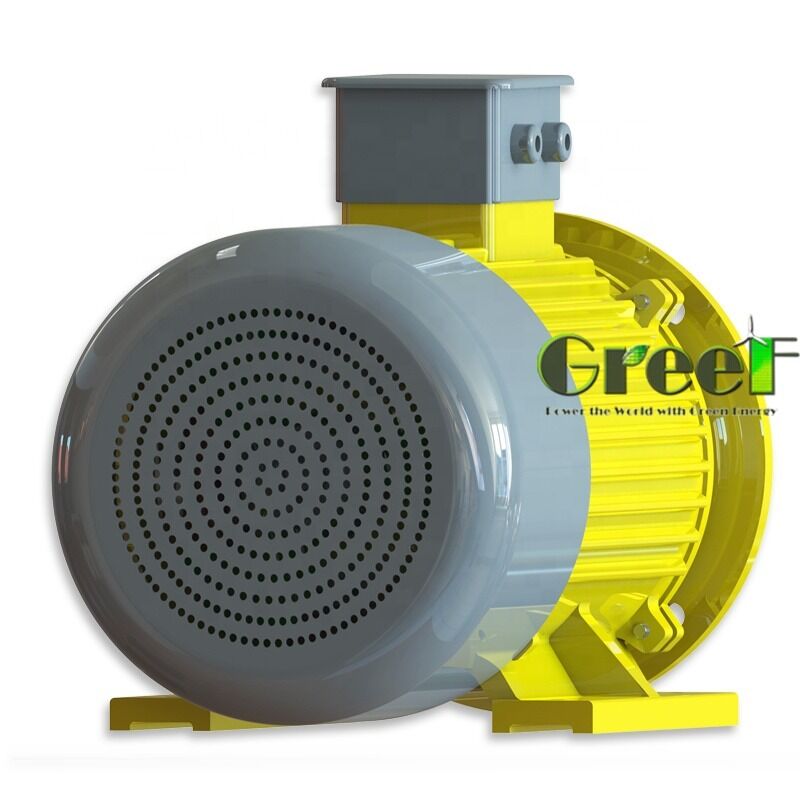

50HZ and 60HZ Frequency Permanent Magnet Motor with 100Mohm Min 500Vdc Insulating Resistance and 6 Poles for Industrial Systems

50HZ 60HZ permanent magnet motor

industrial permanent magnet motor 500Vdc

permanent magnet motor with 100Mohm insulation

Nazwa handlowa:

Greef

Orzecznictwo:

Model Number:

TYP

Skontaktuj się z nami

Poproś o wycenę

50HZ and 60HZ Frequency Permanent Magnet Motor with 100Mohm Min 500Vdc Insulating Resistance and 6 Poles for Industrial Systems

Szczegóły produktu

Liczba biegunów:

Klasyfikacja stopni:

IP54

Aplikacja:

Pojazdy elektryczne, robotyka, automatyka przemysłowa

Rodzaj magnesu:

NdFeB

Poziom izolacji:

Nazwa produktu:

Silnik z magnesami trwałymi

Typ generatora:

3fazowy silnik synchroniczny AC

Typ silnika:

Magnes trwały

Warunki płatności i wysyłki

Minimum Order Quantity

1Set

Cena

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Zasady płatności

T/T, Western Union, MoneyGram, L/C

Supply Ability

PRODUKTY POWIĄZANE

wideo

High Efficiency Greater Than 95% Permanent Magnet Motor with 0-8000 RPM and IP54 Classification

Najlepszą cenę

wideo

Permanent Magnet Synchronous Motor with 0-8000 RPM Speedrange Featuring High Efficiency & Energy Saving and NdFeB Permanent Magnets

Najlepszą cenę

wideo

IP54 Classification Permanent Magnet Motor with 0-8000 RPM Speed Range and High Efficiency for Industrial Applications

Najlepszą cenę

High Efficiency Exceeding 95% 6 Poles H Insulation Grade Permanent Magnet Motor Synchronous Magnet Motor

Najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

Product Overview

TYP Magnet motors feature rotors with permanent magnets, delivering enhanced efficiency and increased power density relative to motor frame size. These motors are powered by frequency inverters, maintaining steady torque across a broad speed spectrum while performing effectively even at low speeds.

Technical Specifications

Maximum Radial Load - 100,000 Hours - Fr (kN)

Frame	1000 rpm		1500 rpm		3000 rpm
	L	L/2	L	L/2	L	L/2
132S	1,4	1,6	0,9	1	0,9	1
132M	1,4	1,6	0,9	1	0,9	1
132M/L	1,4	1,6	0,9	1	0,9	1
160M	1,9	2,1	1,2	1,4	1,2	1,4
160L	1,9	2,1	1,2	1,4	1,2	1,4
180M	2,5	2,8	1,7	1,9	1,7	1,9
180L	2,6	2,8	1,7	1,9	1,7	1,9
200M	3	3,3	2	2,2	2	2,2
200L	3	3,3	2	2,2	2	2,2
225S/M	4,4	4,9	2	2,2	2	2,2
250S/M	4,4	4,8	3	3,3	3	3,3
280S/M	4,4	4,8	2,7	2,9	2,7	2,9
315S/M	4,9	5,4	2,5	2,7	2,5	2,7

If you need more information, please contact us.

Key Features

High Efficiency & Energy Saving: Saves up to 30% energy compared to traditional induction motors, with measured savings between 10-40%
Constant Torque Over Wide Speed Range: Delivers consistent torque across broad speed spectrum without forced ventilation
Long Bearing Life & Low Maintenance: L10 bearing life up to 100,000 hours with easy re-lubrication
High-Performance Permanent Magnets: Utilizes powerful NdFeB rare-earth magnets with protective epoxy coating
Integrated Thermal Protection: Embedded PTC thermistors protect against overheating and voltage irregularities
Synchronous Operation & Stable Speed: Eliminates slip and rotor power loss for enhanced control accuracy
Low Operating Current: Reduces stator current by 15-30%, lowering cable transmission losses
Lower Temperature Rise: 15-20°C lower than comparable asynchronous motors
Significant Cost Savings: Approximately 9,000 RMB annual energy savings when replacing 37kW IE2 induction motor

Applications

TYP series high-efficiency permanent magnet frequency conversion synchronous motors deliver outstanding performance across various industries including:

Injection molding machines
Air compressors
Pipe manufacturing equipment
Hydraulic machinery
Food processing equipment
Cement pipe production lines
Plastic extruders
Wire drawing machines
Pharmaceutical equipment

Customization Options

Greef offers customized Permanent Magnet Motor solutions with TYP models manufactured in China and CE certified. We specialize in Synchronous Magnet Motor and Brushless Permanent Magnet Motor designs featuring durable cast iron generator shells and operating speeds of 0-8000 RPM.

Insulating resistance: 100Mohm Min (500Vdc)

Minimum order: 1 set | Pricing: Negotiable | Delivery: 25 working days

Payment: T/T, Western Union, MoneyGram, L/C

Packaging & Shipping

Each motor is securely wrapped in anti-static and shock-absorbent materials, placed in sturdy cardboard boxes reinforced with foam inserts. Multiple shipping options available including standard ground, expedited air freight, and international courier services. All shipments are tracked and insured.
